Basic Resin (500g)

Product Introduction
Basic Resin is a photopolymer resin for light-based 3D printers that cures when exposed to light with a wavelength of 395–405 nm.
It is available in a wide variety of colors, making it suitable for many different applications.

Features

• Excellent at reproducing fine details such as holes in 3D models, intricate shapes, and surface textures.
• Its low viscosity makes post-print cleaning easy.
• Its fast curing speed and high flexibility in print parameter settings help reduce printing time.

Main Applications

• Product development prototyping
• Shape and design verification
• Electronic hardware

Physical Properties of the Resin
Color: Purple, Blue, Pink, Yellow, Green, Matte Black, Orange
Density: 1.12 – 1.16 g/cm³
Viscosity: 70 – 100 cps @ 25 °C

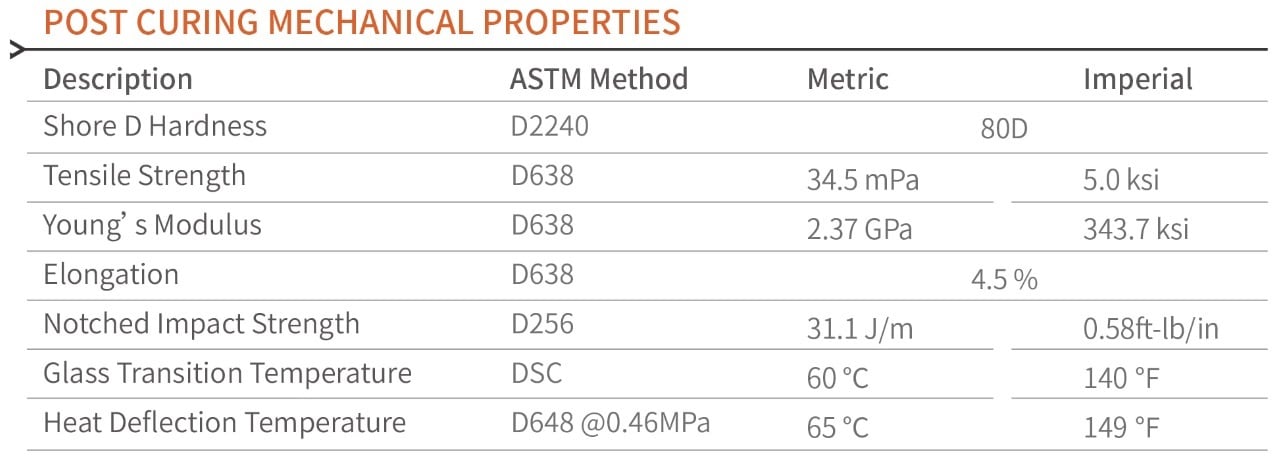

Test Item | Test Method | Property Value
Shore Hardness D | ASTM D2240 | 75–80
Tensile Strength (MPa) | ASTM D638 | 34.5
Young’s Modulus (MPa) | ASTM D638 | 2370
Elongation (%) | ASTM D638 | 4.5
Notched Impact Strength (J/m) | ASTM D256 | 31.1
Glass Transition Temperature (°C) | DSC | 60
Heat Deflection Temperature (°C) | ASTM D648 @ 0.46 MPa | 65.3

Available Colors
Purple, Blue, Pink, Yellow, Green, Matte Black, Orange
